Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: FANRYN
Πιστοποίηση: CE, ASTM E84, EN 13501 12018
Αριθμό μοντέλου: Πίνακας οροφής από υαλοειδή
Ποσότητα παραγγελίας min: 1*40HQ ανά προδιαγραφή
Τιμή: 0.5-5$/m2
Συσκευασία λεπτομέρειες: Πλαστική σακούλα ή χαρτοκιβώτιο
Χρόνος παράδοσης: 15 Ημέρες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: 1*40HQ 15 ημέρες
Λεπτομερής ενημέρωση
θερμική αγωγιμότητα: >=0,4 W/m·K Πυκνότητα: 70-130 kg/m³
Περιβαλλοντικές επιπτώσεις: Ανακυκλώσιμος, φιλικός προς το περιβάλλον αντίσταση στη φωτιά: Άκαυστο, Κλάση A1
υδάτοςΑπορρόφηση: <1% Όνομα προϊόντος: Πίνακας οροφής από υαλοειδή
Εφαρμογή: αίθουσες διδασκαλίας, γραφεία, εμπορικό κέντρο κ.λπ. Πάχος: 15,20,25 χλστ
Υλικό: Υαλοβάμβακας NRC: 0.8-0.9
Επισημαίνω:

acoustic fiberglass ceiling panel

,

high density glass wool board

,

soundproof glass wool ceiling panel


Περιγραφή προϊόντων

Products Description

FANRYN Standard Fiberglass Ceiling Board is an economical and practical base model manufactured from high-density fiberglass wool. Featuring an untreated plain surface and neatly trimmed edges, it is designed to align seamlessly with grid systems during installation, ensuring a flat and uniform finished appearance. While retaining the core acoustic and thermal insulation properties of fiberglass, this version offers a cost-effective ceiling solution suitable for projects requiring separate finishing or prioritizing functional performance.

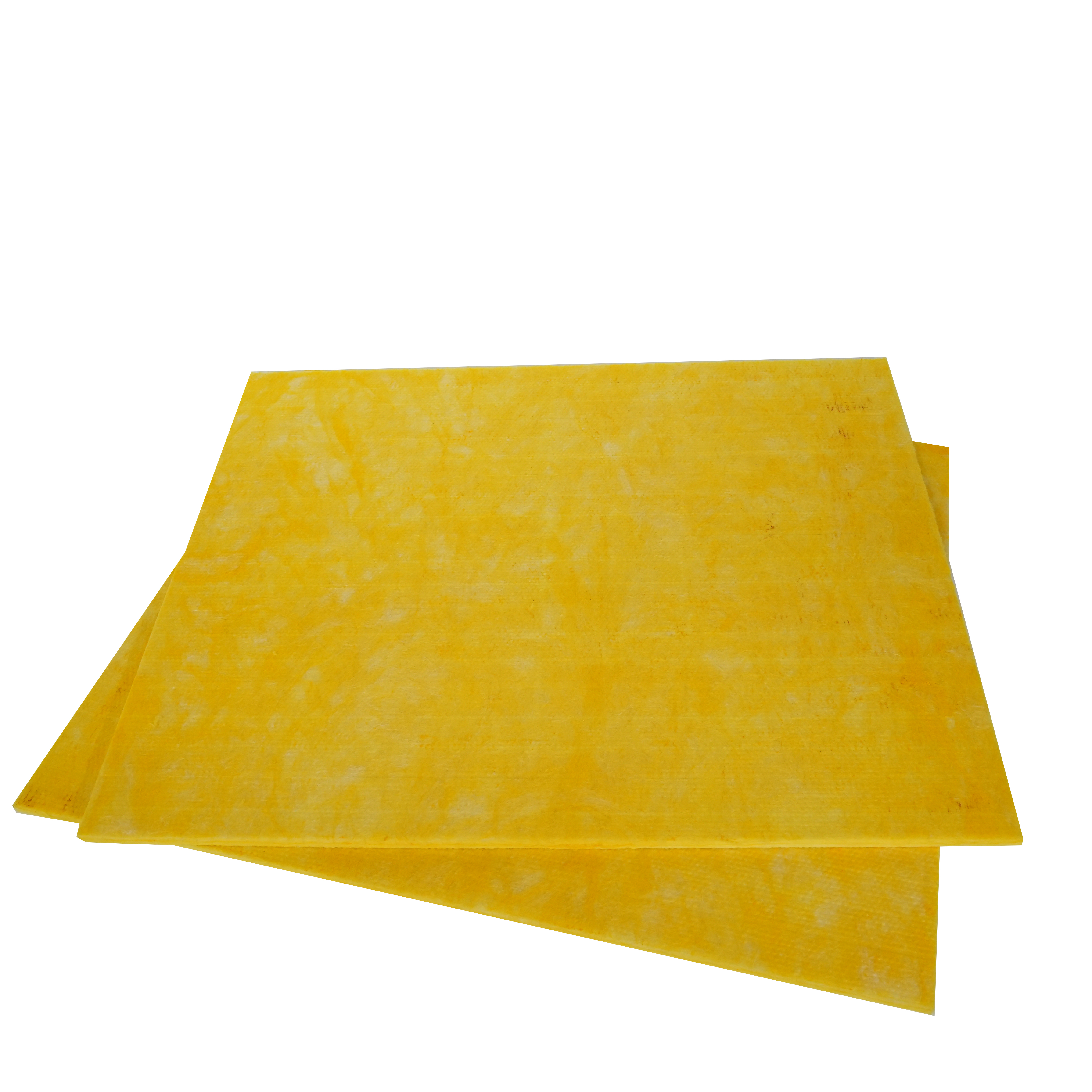

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  0

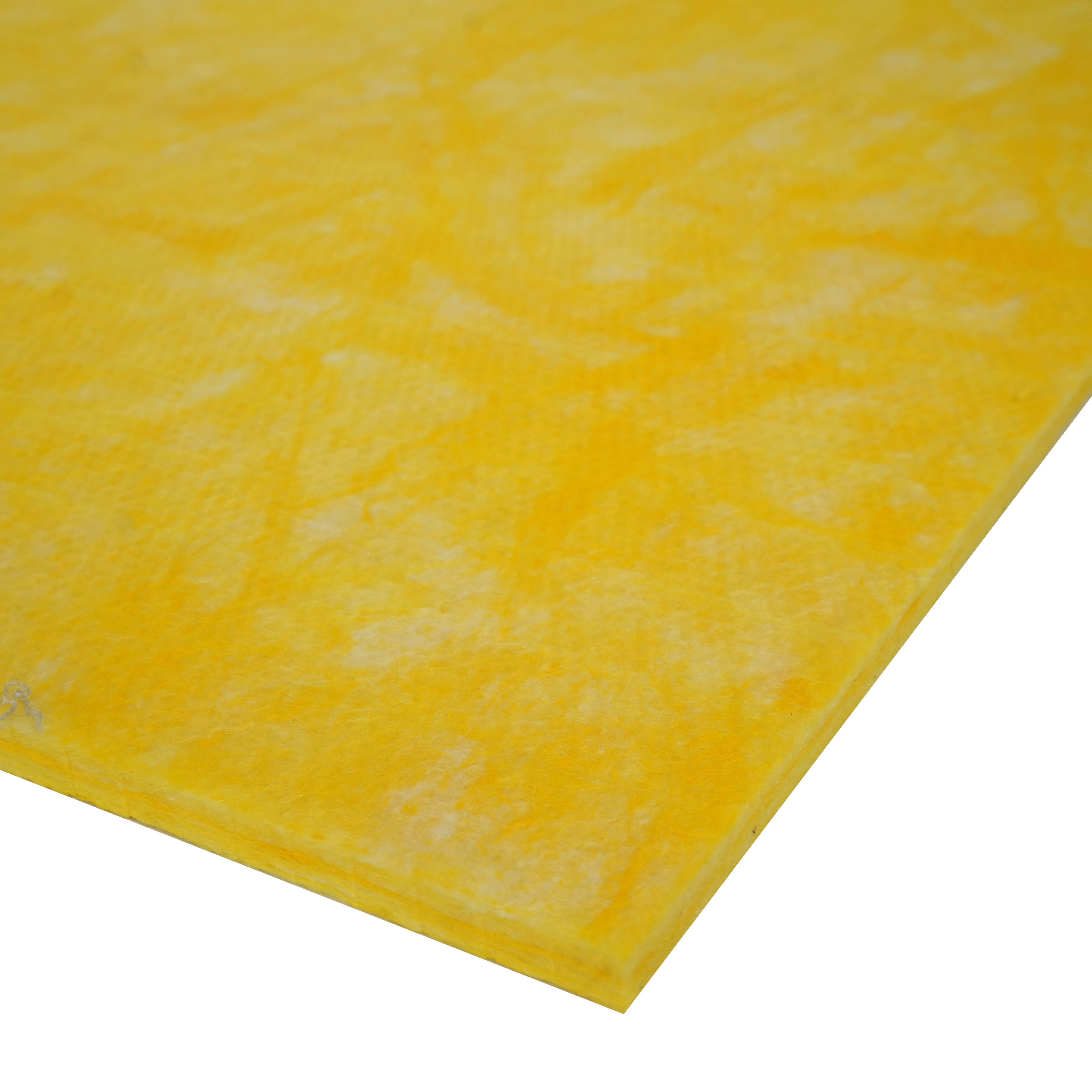

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  1

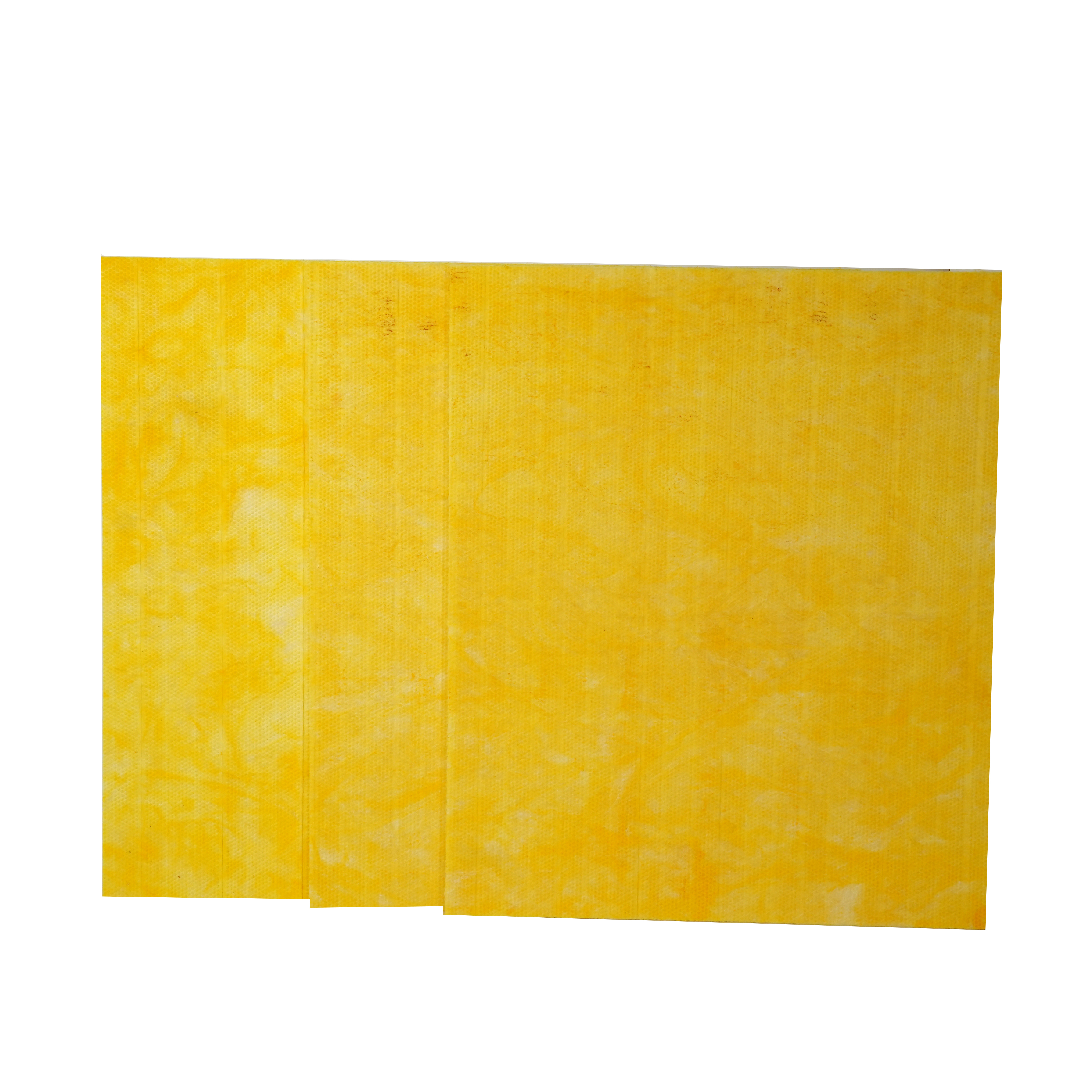

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  2



Product feature of the fiberglass ceiling panel

  • Non-Combustible Safety: Certified as an inherently fire-resistant material, providing reliable protection and compliance with stringent building safety standards.

  • Dimensional Stability: Resists sagging, warping, or delamination over time, ensuring long-term structural integrity and a consistently flat installed appearance.

  • Superior Acoustics: Delivers excellent sound absorption, enhancing acoustic comfort and noise control in diverse interior environments.

  • Eco-Conscious Material: Classified as a green building product, supporting sustainable construction practices and contributing to environmental certification goals.





Product Specifications

Material


Fiberglass wool board

Density

90-130kg/m3

Face

Painting laminated with decorative fiberglass tissue or PVC facing

Color

White, black and others to order

Fire-resistant

Class A

Thermal-resistant

≥0.5 (m2·k/w)

NRC

0.9-1.0

Humidity

Dimensionally stable with RH up to 95% at 40,no sagging, wrapping or delaminating

Moisture rate

≤1%(JC/T670-2005)

Environmental impact

Tiles and packing are fully recyclable

safety

Limit of radionuclides in building materials

  specific activity of 226Ra: Ira≤1.0

 specific activity of 226Ra, 232Th, 40K: Ir≤1.3


Packing and Loading Quantity for Containers:

SIZE

CARTON/40HQ

PIECES/CARTON

M2/40HQ

600*600*15MM

532

20

3830.4

600*1200*15MM

266

20

3830.4

600*600*20MM

532

15

2872.8

600*1200*20MM

266

15

2872.8

600*600*25MM

532

12

2298.24

600*1200*25MM

266

12

2298.24



 Installation:
◆use exposed grids, grids width:15mm or 24mm
◆tiles are easy to trim and install
◆both inches and centimeters grids are available


Product application

classrooms, offices, shopping center, etc.

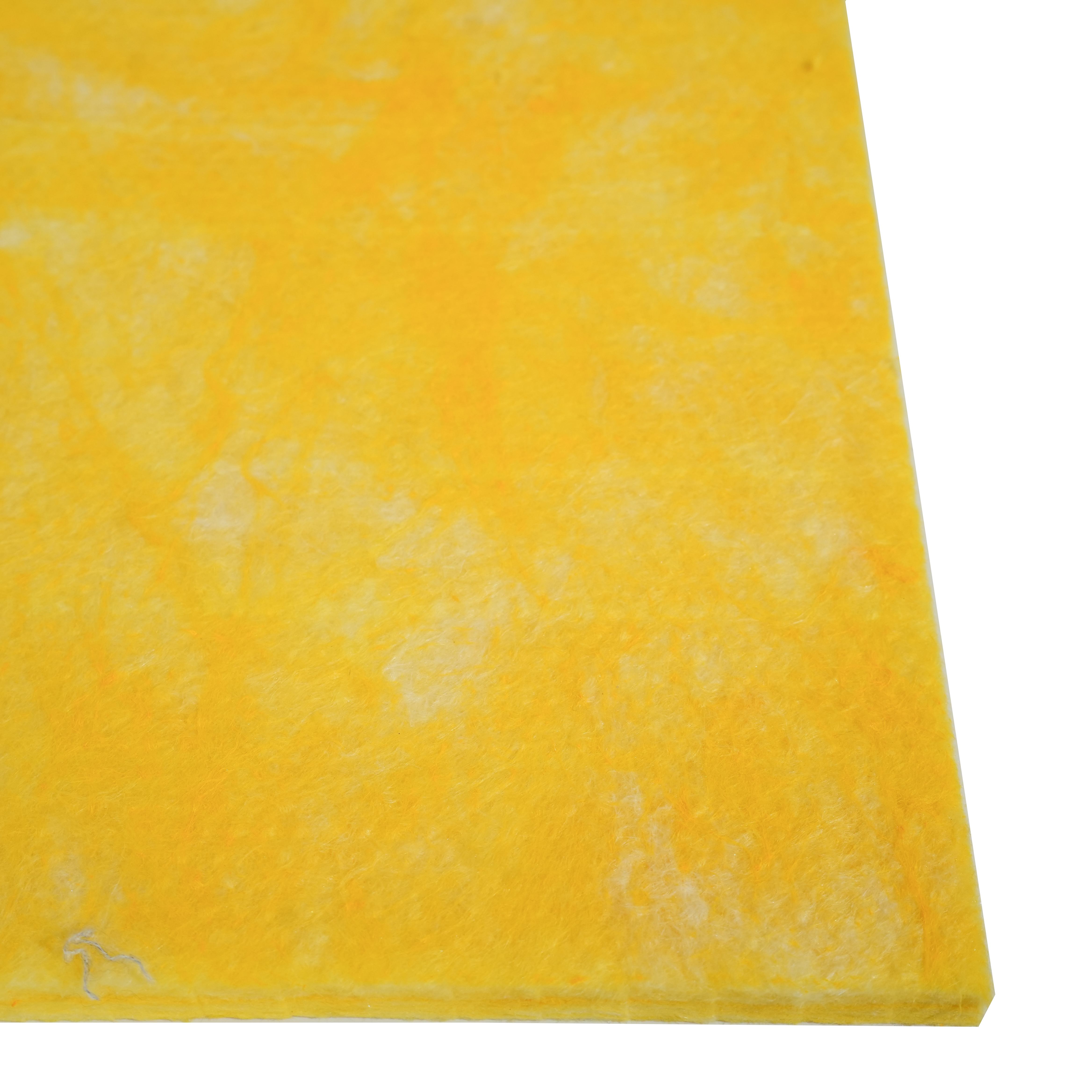

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  3









Main Facing:

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  4

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  5

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  6

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  7

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  8



Production packing of the glass wool board

Carton or plastic bag

Note: OEM is acceptable


Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  9

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  10

Acoustic Fiberglass Ceiling Panel Glass Wool Board With High Density  11
