Product Description
Glass wool Pipe Section is a kind of economical insulating material which is light and easy to install. This material has excellent performance of heat and sound insulation under both extremely high and low temperature conditions(.-85 degree to 454 degree) Therefore, glass wool section pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.

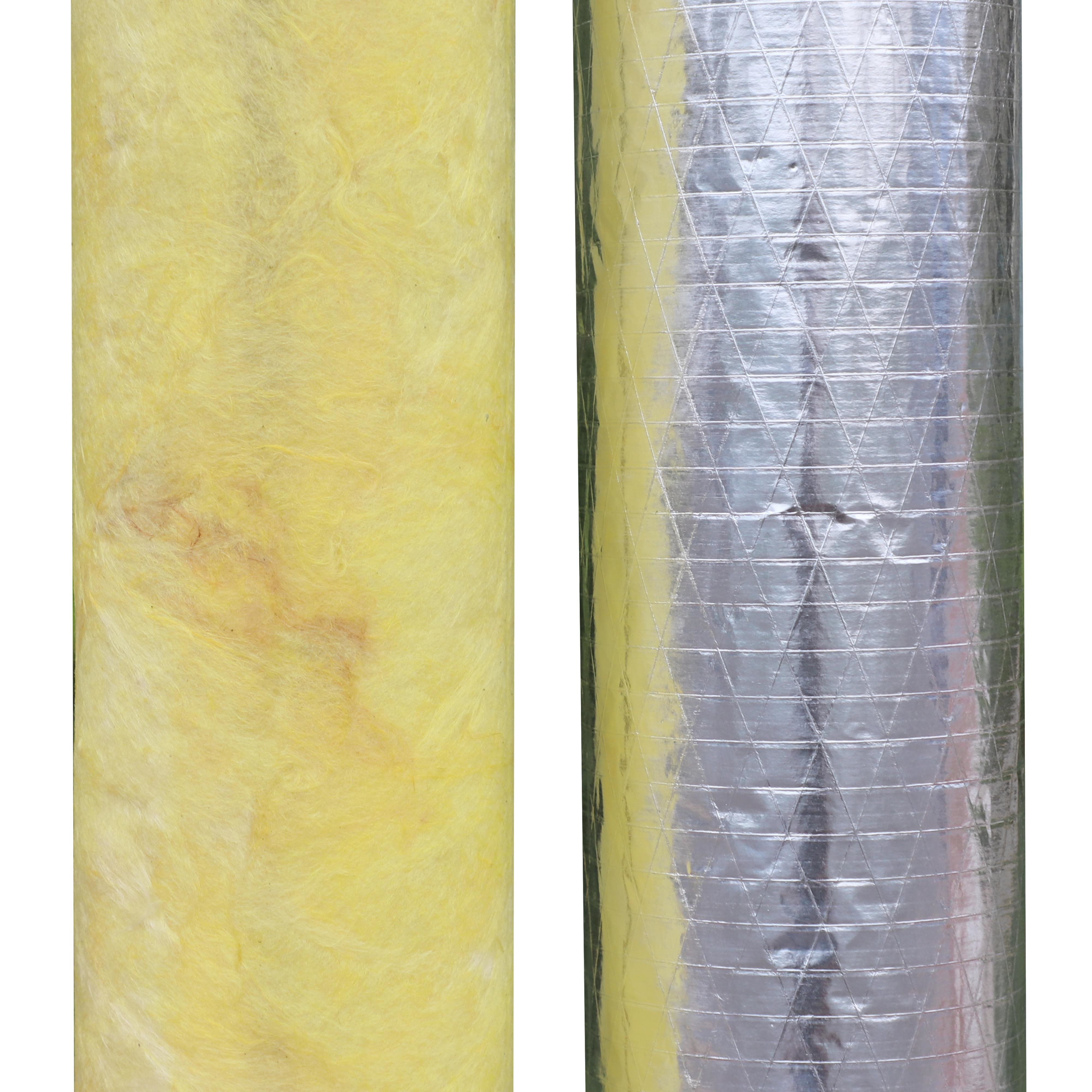

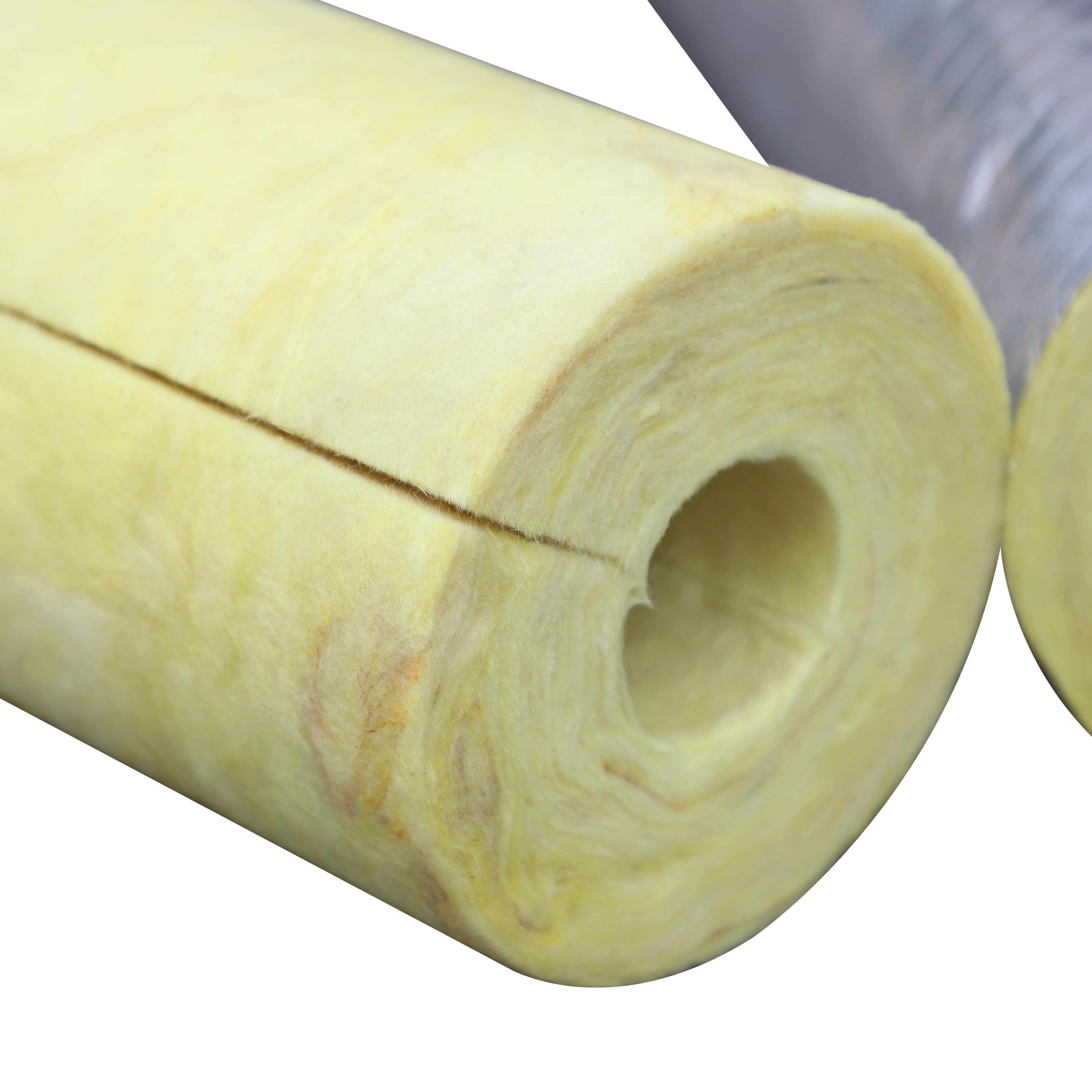

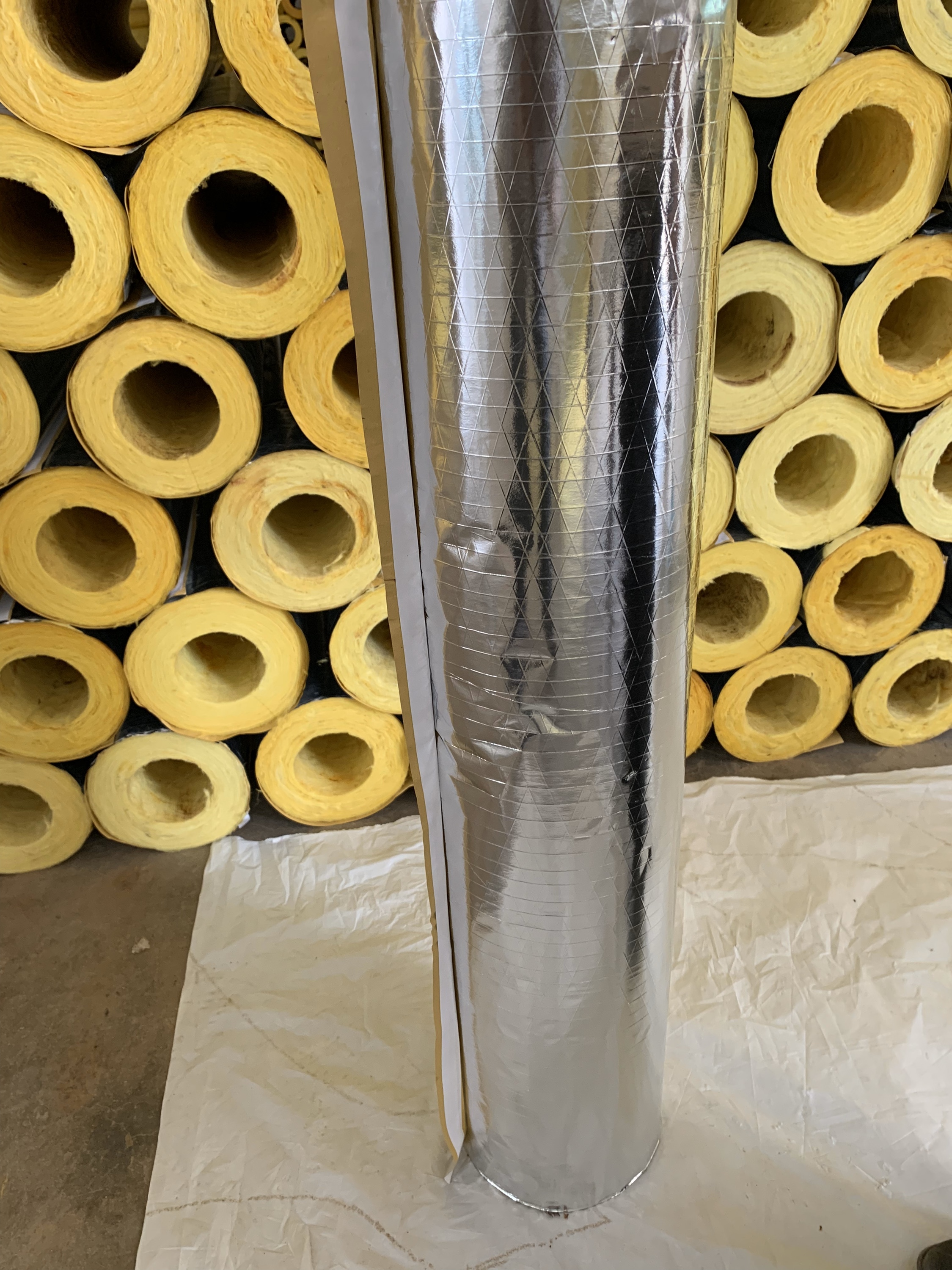

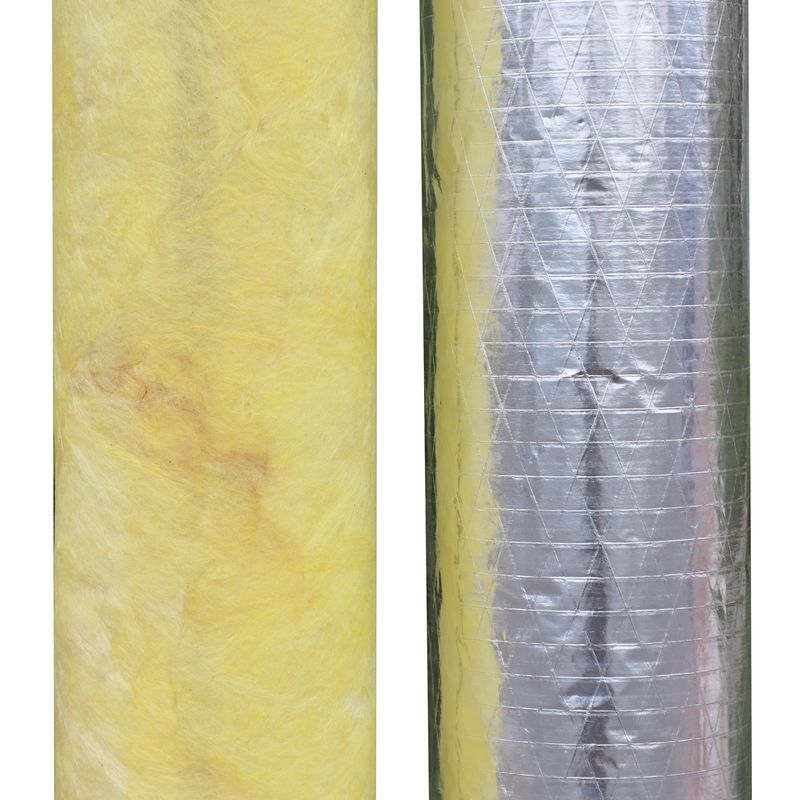

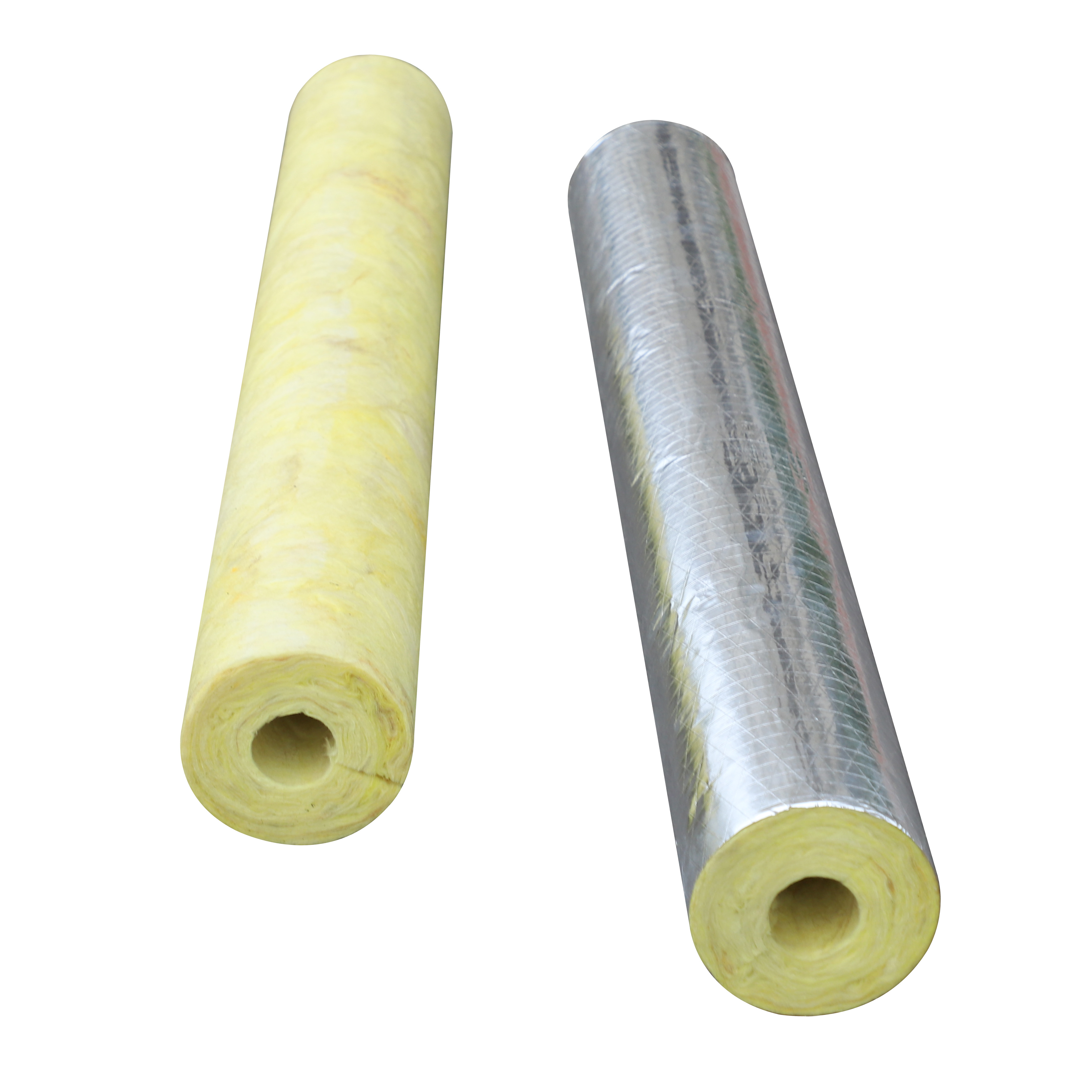

Product introduction of the 2" Glass wool pipe with aluminum foil facing
Glass wool Pipe Section is a kind of economical insulating material which is light and easy to install. This material has excellent performance of heat and sound insulation under both extremely high and low temperature conditions (-85 degree to 454 degree).
Product parameter of the 2" Glass wool pipe with aluminum foil facing
|
|
Recommend Thickness List(mm)
|
Pipeline System Type
|
The Thickness of glasswood pipe shell applied in different pipeline(mm)
|
|
Liquid Temperature Range℃
|
Diameter of Branches Under 50mm
|
Under 25mm
|
32-50
|
64-100
|
125-150
|
Above 200mm
|
|
Air System Steaming and Water System High Temperature/
High Pressure System
|
152-238
|
40
|
64
|
64
|
75
|
89
|
89
|
|
Medium Temperature/
Medium Pressure System
|
122-151
|
40
|
50
|
64
|
64
|
75
|
75
|
|
low Temperature/
low Pressure System
|
94-121
|
25
|
40
|
40
|
50
|
50
|
50
|
|
low Temperature System
|
49-93
|
13
|
25
|
25
|
40
|
40
|
40
|
|
Steaming Condensator of Watering System
|
Any Temperature
|
25
|
25
|
40
|
50
|
50
|
50
|
Equivalent Thickness of Surface Cooling Prevention
|
Environment
Temperature
|
Relative Humidity
|
System Working Temperature
|
|
2℃
|
7℃
|
13℃
|
|
38℃
|
50%-60%
|
25
|
25
|
25
|
|
70%
|
40
|
30
|
30
|
|
80%
|
75
|
60
|
50
|
|
85%
|
100
|
90
|
75
|
|
32℃
|
50%-60%
|
25
|
25
|
25
|
|
70%
|
25
|
25
|
25
|
|
80%
|
50
|
50
|
40
|
|
85%
|
80
|
75
|
60
|
|
27℃
|
50%-70%
|
25
|
25
|
25
|
|
80%
|
50
|
40
|
30
|
|
85%
|
75
|
65
|
50
|
|
21℃
|
50%-70%
|
25
|
25
|
25
|
|
80%
|
50
|
40
|
30
|
|
85%
|
75
|
50
|
40
|
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
|
Product size of the 2" Glass wool pipe
|
Density(kg/m3)
|
Thickness(mm)
|
Length (mm)
|
Diameter (mm)
|
|
48-80
|
25-90
|
1000,1200
|
18-529
|
Product feature and application of the glass wool tube
Glass wool pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.
Production details of the glass wool tube
Packing &Shipping
Plastic bag
Plastic bag+Carton
Our Service
One year warranty for all products
Necessary technical support
Delivery quality products with excellent service on time
Supply one stop solution on insulation and ventilation products
Supply high level QC service
Company Information
BEIJING FANRYN TECHNOLOGY LTD is a global and multiple company, specializes in developing, manufacturing, and sales of HVAC products. Our technical team enjoys 20 years' experience in developing and producing of insulation material ventilation products and tape products. Our head office is located in Beijing China. Currently, we have wholly-owned overseas subsidiaries and branches in 4 countries with a view to realize localization, which also represents an essential progress in our globalization target.
FAQ
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5:About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5:The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
