products

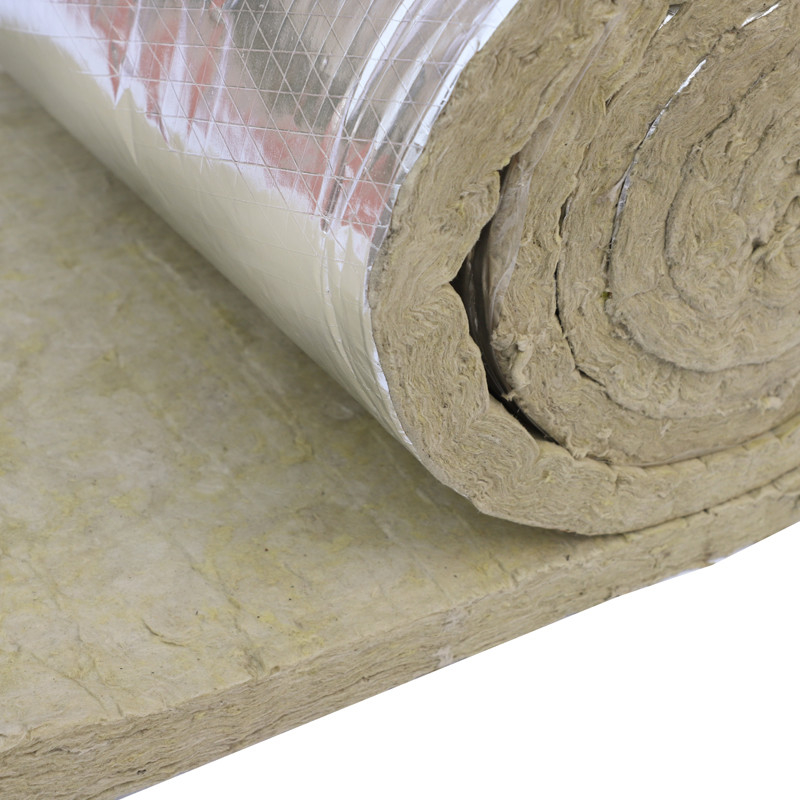

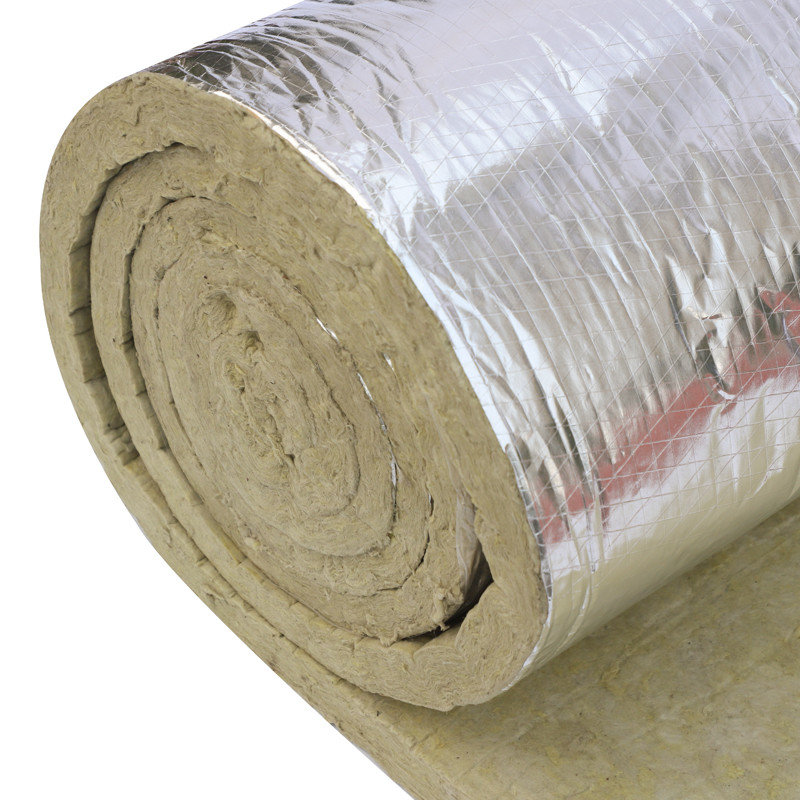

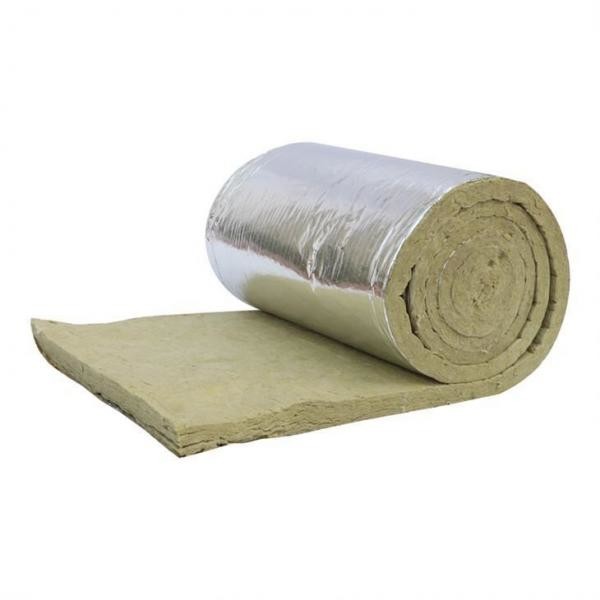

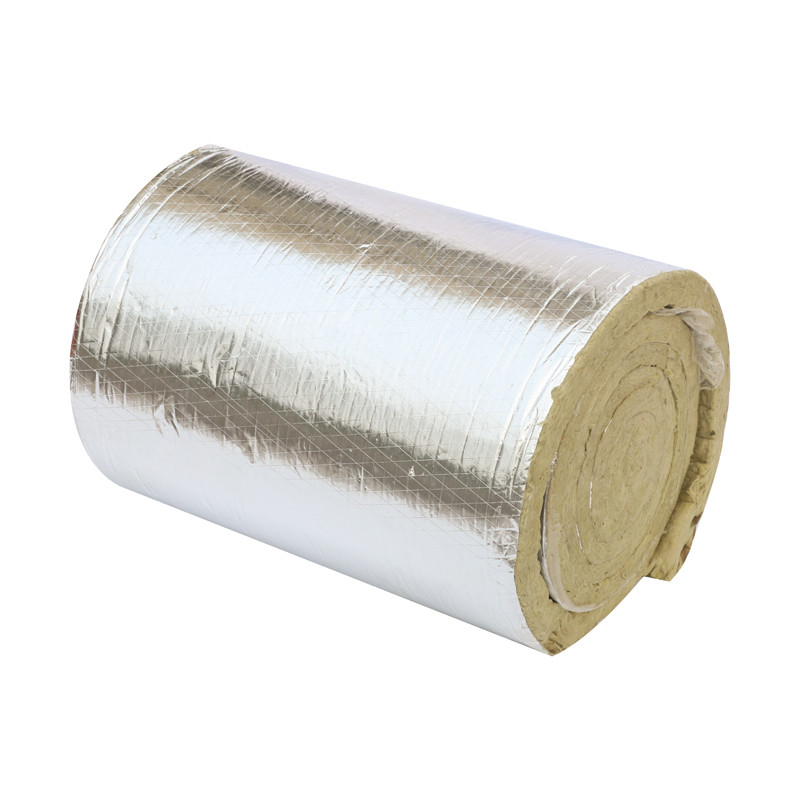

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: FANRYN
Ποσότητα παραγγελίας min: 1*40ft δοχείο
Συσκευασία λεπτομέρειες: Πλαστικές σακούλες
Χρόνος παράδοσης: 7-10 εργάσιμες ημέρες
Όροι πληρωμής: Τ/Τ
Λεπτομερής ενημέρωση
Αντίσταση στη φωτιά: Τάξη Α1 Μη καύσιμη: Α
Συντελεστής οξύτητας: 1.6 Ακουστική απόδοση: Εξαιρετική ηχομόνωση
Διαστατική σταθερότητα: Λιγότερη από 1% συρρίκνωση σε υψηλές θερμοκρασίες Δυνατότητα συμπίεσης: 50-200 kPa
Περιβαλλοντικές επιπτώσεις: Κατασκευασμένο από φυσικά και ανακυκλωμένα υλικά Νερό Repellency: Άλλες συσκευές
Απορρόφηση υγρασίας: Λιγότερο από 1% Δυνατότητα τράβηξης: 50-200 kPa
Δύναμη κάμψης: 50-200 kPa Σφιχτότητα: 50-200 Kg/m3
Υπηρεσία Temp: 650 Θερμική αγωγιμότητα: 0.035-0.044 W/mK
Απορρόφηση ήχου: 0.75-1.25 NRC
Επισημαίνω:

Rock Wool Roll Insulation

,

Aluminum Foil Rock Wool Roll

,

Acoustic Control Rock Wool Roll


Περιγραφή προϊόντων

1_02.jpgAcoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 1

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Main application:

  • Insulation for external wall, roofing and floating floor
  • Insulation for big sized pipeline

Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 3

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 4

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 5



Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 6

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 7

rock wool blanket

rock wool blanket
