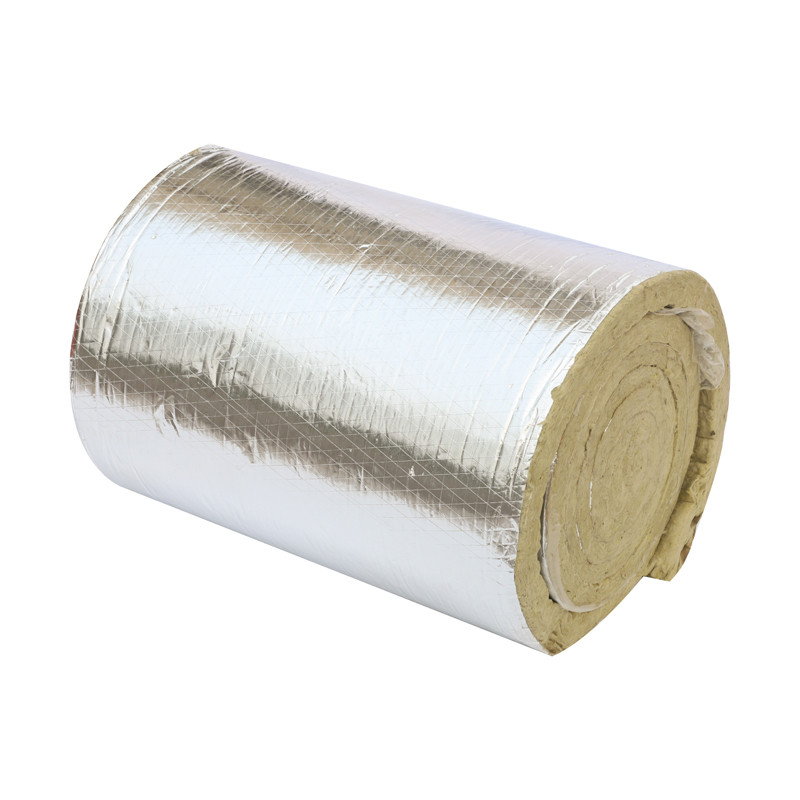

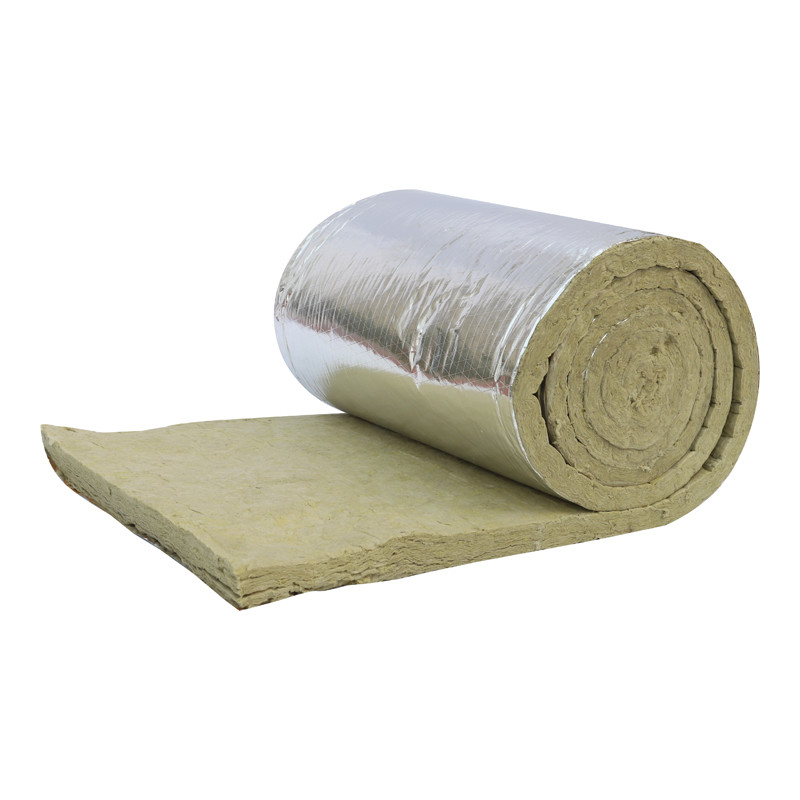

Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Fanryn
Ποσότητα παραγγελίας min: Ένα 20ft συγκρατητή
Τιμή: USD 1-20 per roll
Συσκευασία λεπτομέρειες: Τύπος συρρίκνωσης PE
Χρόνος παράδοσης: 10-15 εργάσιμες ημέρες
Όροι πληρωμής: Τ/Τ
Δυνατότητα προσφοράς: 60000 τόνοι το χρόνο
Λεπτομερής ενημέρωση
Απορρόφηση ήχου: 0.75-1.05 Υλικό: Ορυκτό μαλλί
Δυνατότητα τράβηξης: 2-5 kPa Συντελεστής οξύτητας: 1.6
Δύναμη κάμψης: 2-5 kPa Αντίσταση στη φωτιά: Τάξη Α1
Περιβαλλοντικές επιπτώσεις: Περιβαλλοντικά φιλικό Σημείο τήξης: 1000-1200°C
Σφιχτότητα: 50-200 Kg/m3 Μη καύσιμη: Α
Απορρόφηση νερού: Λιγότερο από 1% Θερμική αγωγιμότητα: 0.035-0.044 W/mK
Δυνατότητα συμπίεσης: 50-200 kPa Ανθεκτικότητα στην υγρασία: Εξαιρετικό.
Επισημαίνω:

Aluminum Foil Facing Rock Wool Felt

,

Big Sized Pipeline Rock Wool Felt


Περιγραφή προϊόντων

1_02.jpgBig Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 1

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Main application:

  • Insulation for external wall, roofing and floating floor
  • Insulation for big sized pipeline

Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 3

Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 4

Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 5



Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 6

Big Sized Pipeline Rock Wool Felt With Aluminum Foil Facing 7

rock wool blanket

rock wool blanket
